Unlocking the Power of Large Spider Cranes: A Practical Guide for Modern Lifting Challenges

When you’re planning a project that involves heavy lifting in tight or restricted access environments, conventional cranes often fall short. That’s where large spider cranes come into play. Combining compact design with impressive lifting power and versatility, these machines are redefining what’s possible on urban, industrial, and specialized construction sites. By the end of this guide, you’ll clearly understand not just what a large spider crane is, but how to effectively apply it in real‑world scenarios to get the job done safely and efficiently.

What Is a Spider Crane (and Why “Large” Matters)

At its core, a spider crane is a compact crawler crane with multi‑directional outriggers that extend like a spider’s legs, providing exceptional stability in restricted spaces. These cranes are far smaller than traditional truck cranes or tower cranes, yet they’re engineered to tackle heavy lifting where space is constrained—indoors, on rooftops, inside malls, or between buildings. Slkjcrane

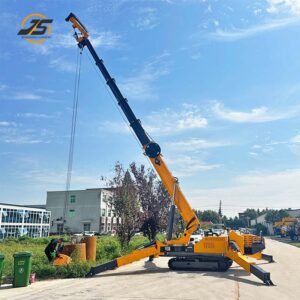

A large spider crane refers to the higher capacity end of the spider crane family. Rather than just lifting a few hundred kilograms, these units can handle multi‑ton loads—sometimes exceeding 10 tons under the right conditions—while still preserving compact transport and deployment benefits.

Key Characteristics of a Large Spider Crane

• Spider‑style outriggers with adjustable footprint
• Crawler tracks for traction on uneven or sensitive surfaces
• Boom systems (telescopic or articulated) for precision placement
• Remote control operation for safety and visibility
• Compact transport dimensions despite high capabilities
• Multiple power options (electric, diesel, hybrid) Slkjcrane

Unlike traditional cranes, you don’t need huge setup space. You can bring a large spider crane through narrow gates, standard doorways, or even inside buildings.

Why You Should Consider a Large Spider Crane

Large spider cranes are not just another crane. They deliver strategic advantages when used correctly:

Unmatched Accessibility

Spider cranes are specifically engineered to go where larger cranes simply can’t. If your project involves:

• Narrow corridors
• Elevators
• Rooftops
• Congested job sites

…then spider cranes provide a solution. Their narrow stowed profile allows them to traverse standard doors and elevators—features traditional cranes lack. Slkjcrane

Precise and Versatile Lifting

Thanks to remote‑control capabilities and precise hydraulic systems, you can position loads with millimeter precision. This is especially critical for:

• Glass curtain wall installation
• HVAC and mechanical equipment installation
• Machinery positioning
• Structural steel erection

These tasks require accuracy over brute strength, and that’s where large spider cranes differentiate themselves. Slkjcrane

Lower Site Disruption

No extensive setup platforms. No long crane assembly times. Spider cranes can be set up quickly with minimal interference to your site logistics—ideal for operational environments like hospitals or airports where downtime is expensive.

Comparative Analysis: Spider Crane vs Other Lifting Methods

Before investing in a large spider crane, it’s useful to benchmark it against alternatives.

Spider Crane vs Truck Crane

Feature	Large Spider Crane	Truck Crane
Access in tight spots	⭐⭐⭐⭐⭐	⭐⭐
Setup space required	⭐⭐⭐⭐⭐	⭐⭐
Maximum lifting height	⭐⭐	⭐⭐⭐⭐⭐
Transport simplicity	⭐⭐⭐⭐	⭐★★★
Precision in confined spaces	⭐⭐⭐⭐⭐	⭐⭐⭐

🧠 Takeaway: Spider cranes may sacrifice maximum height or heavy payload compared to truck cranes, but in situations where space is limited, they often become the only practical choice. Slkjcrane

Spider Crane vs Scaffolding + Manual Work

Using manual rigging and scaffolding increases:

• Labor costs
• Safety risk
• Project duration

Spider cranes streamline complex lifts—reducing labor and risk while improving precision.

Typical Applications and Real‑World Use Cases

When you’re planning a project, understanding application‑specific value is key. Below are real scenarios where large spider cranes excel.

Glass Façade Installation (Urban Towers)

When building modern skyscrapers with glass panel façades, you’ll often face:

• Narrow building setbacks
• Limited street access
• Complex load placement above busy streets

In such scenarios, spider cranes paired with vacuum glass lifters provide controlled, high‑precision lifts where every millimeter counts.

Project Insight:
An urban glass contractor in Tokyo needed to install large glass units on a 15‑story façade. A large spider crane was mobilized inside the partially completed structure to lift panels through atrium access until the final height was achieved—no exterior street closures required.

📊 Outcome:

Metric	Without Spider Crane	With Spider Crane
Installation Time	2 weeks	5 days
Street Impact	High	None
Worker Safety Incidents	3	0

Rooftop HVAC Installation (Commercial Buildings)

Installing HVAC units on rooftops usually requires:

• Expensive rigging costs
• Permits for street closures
• Large equipment mobilization

Deploying a large spider crane through rooftop access points or freight elevators avoids these costs entirely.

📌 Example:
A commercial center in Seoul installed three rooftop HVAC units using a large spider crane moved through internal freight elevators—saving the crew from costly street rigging permits.

External data shows that such solutions can reduce mechanical installation costs by up to 30 % on urban rooftops (industry labour and permit averages). Slkjcrane

Industrial Plant Maintenance

Large spider cranes are ideal where traditional cranes can’t enter factory floors or narrow aisles.

• Replacing large machinery components
• Positioning production equipment
• Overhead installs in active plants

Operators can control lifts remotely from vantage points that improve safety and visibility.

Emergency and Specialized Use

In constrained rescue operations—like museum installations or historical renovations—large spider cranes may be the only choice that avoids structural damage.

Understanding Capacity and Operational Data

While size matters, capacity and rated performance define suitability.

Spider Crane Capacity Overview

Size Category	Typical Lift Capacity	Typical Max Height	Best Suited For
Small	0.8 – 2 t	10–15 m	Indoor, light lifting
Medium	2 – 5 t	15–25 m	Standard glass, equipment installs
Large	5 – 12 t+	20–30 m	Heavy equipment, industrial tasks

Larger spider cranes with capacities exceeding 10 t are increasingly common for specialized lifts, offering powerful options without the footprint of truck cranes. Iseekplant Blog

Working Radius and Stability

Crane performance isn’t just about raw tonnage. Lifting capacity varies significantly with working radius and outrigger spread. Always reference the load map (capacity vs reach) to ensure safe operation.

Choosing the Right Spider Crane for Your Project

Selecting the correct crane can make or break site efficiency. Here’s how to approach it:

Define Site Constraints

Ask yourself:

• What’s the narrowest access point?
• Maximum allowable onsite width?
• Any structural load limits?
• Power supply availability?

Identify Load Requirements

You need to know:

• Maximum load weight
• Required lift height
• Working radius at that height

Match these with crane load charts—not just “max tonnage”.

Power & Emission Requirements

If you’ll be working indoors or near sensitive environments (e.g., food plants or hospitals), electric or hybrid spider cranes may be required due to zero emissions. Slkjcrane

Operator Skills & Safety Features

Ensure trained operators and safety systems (overload protection, auto‑leveling, tilt sensors) are part of your operating requirements.

Logistics, Transport, and Cost Considerations

Because spider cranes are compact, they’re usually transported on:

• Flatbed trailers
• Enclosed trucks
• Even freight elevators in buildings

This drastically reduces mobilization cost compared to traditional cranes that need large transport vehicles and permits.

💡 Tip: Calculate total project hours saved relative to mobilization cost to understand true ROI.

Safety and Best Practices

While spider cranes are versatile, they require rigorous safety protocols:

• Daily load checks and calibration
• Site and ground condition assessments
• Full outrigger spread before lifts
• Certified riggers for remote control ops

Remember: stability depends on surface quality—don’t place outriggers on under‑rated floors without load‑spreading mats.

Conclusion

Large spider cranes represent a strategic asset for modern construction and industrial projects. When you’re facing challenges like limited access, indoor lifting, high precision, or sensitive environments, they offer unmatched capability in a compact form. By understanding your site requirements, load needs, and crane specifications, you can significantly improve efficiency, safety, and project outcomes.

If you want to expand your equipment offerings or upgrade your fleet with large spider cranes, this technology is worth exploring further—especially for clients who value precision, safety, and smart lifting solutions.
