Hot Products

Truck Crane:

The All-Round King for Efficient Operation

Learn The Details

Contact Details

Telephone

+86 153 7656 0472

Address

Beinantian Village South Head, Changgou Town, Jining, Shandong, China
  • 2.1T Crane
    ×
    2.1T Crane
    2.1T Crane
    2.1T Crane
    2.1T Crane
    2.1T Crane
    2.1T Crane
    2.1T Crane
    2.1T Crane
    2.1T Crane
    2.1T Crane

    2.1T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
    The truck-mounted crane is mainly composed of the following parts:
    Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
    Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
    Cargo box: used for loading goods, the length can be configured according to demand.
    Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.

    Category:

    Howo 2.1T Crane Truck Technical Parameters
    Parameter Value
    2.1T Crane
    Maximum lifting weight 2100 Kg
    Maximum lifting moment 67.2 kN·m
    Maximum arm length 5.5 m
    Maximum lifting height 7 m
    Boom length 3.2-7.2 m
    Amplitude range 0-75°
    Rotation angle 360 degree continuous rotation
    Outrigger span 1.9-3.9 m
    Hydraulic system parameters
    System rated flow 20 L/min
    Rated working pressure 20 MPa
    Recommended power 15 kW
    Hydraulic oil tank capacity 35 L
    Chassis parameters
    Horsepower 140 hp
    Transmission case FAST 8J45TA
    Driving method 2WD
    Carriage size 4.5*2.0*0.45m
    Tire model 7.00R16LT 10PR
    Wheelbase 3280 mm
    Open full product page

    2.1T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as "truck-mounted crane") is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios. The truck-mounted crane is mainly composed of the following parts: Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle. Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system. Cargo box: used for loading goods, the length can be configured according to demand. Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.
  • 3.2T Crane
    ×
    3.2T Crane
    3.2T Crane
    3.2T Crane
    3.2T Crane
    3.2T Crane
    3.2T Crane
    3.2T Crane
    3.2T Crane

    3.2T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
    The truck-mounted crane is mainly composed of the following parts:
    Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
    Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
    Cargo box: used for loading goods, the length can be configured according to demand.
    Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.

    Category:

    Howo 3.2T Crane Truck Technical Parameters
    Parameter Value
    Engine WEICHAI WP2.3NQ140E62
    Horsepower 140 hp
    Transmission case FAST 8J45TA
    Driving method 2WD
    Carriage size 4.5*2.0*0.45m
    Tire model 7.00R16LT 10PR
    Wheelbase 3280 mm
    Braking method Air brake
    Cab HOWO Chasing Dreams
    Other configuration air conditioner
    Other standard features Electric doors and windows+central locking, Hande axle, leaf spring: 3/8+6, power take-off
    3.2T Crane
    Maximum lifting weight 3200 Kg
    Maximum lifting moment 67.2 kN·m
    Maximum arm length 7 m
    Maximum lifting height 9.8 m
    Boom length 3.2-7.2 m
    Amplitude range 0-75°
    Rotation angle 360 degree continuous rotation
    Outrigger span 1.9-3.9 m
    Hydraulic system parameters
    System rated flow 40 L/min
    Rated working pressure 20 MPa
    Recommended power 15 kW
    Operating temperature -25℃—+40℃
    Hydraulic oil tank capacity 35 L
    Open full product page

    3.2T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as "truck-mounted crane") is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios. The truck-mounted crane is mainly composed of the following parts: Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle. Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system. Cargo box: used for loading goods, the length can be configured according to demand. Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.
  • 4T Crane
    ×
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane
    4T Crane

    4T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
    The truck-mounted crane is mainly composed of the following parts:
    Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
    Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
    Cargo box: used for loading goods, the length can be configured according to demand.
    Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.

    Category:

    Howo 4T Crane Truck Technical Parameters
    Parameter Value
    Engine WEICHAI WP2.3NQ140E62
    Horsepower 140 hp
    Transmission case FAST 8J45TA
    Driving method 4×2
    Carriage size 4.5*2.0*0.45m
    Tire model 7.00R16LT 10PR
    Wheelbase 3280 mm
    Braking method Air brake
    Cab HOWO Chasing Dreams
    Other configuration air conditioner
    Other standard features Electric doors and windows+central locking, Hande axle, leaf spring: 3/8+6, power take-off
    4T Crane
    Maximum lifting weight 4000 Kg
    Maximum lifting moment 100 kN·m
    Maximum arm length 9.6 m
    Maximum lifting height 11.6 m
    Boom length 4.32-9.6 m
    Amplitude range 0-75°
    Rotation angle 360 degree continuous rotation
    Outrigger quantity 2
    Outrigger span 2.03-4.53 m
    Hydraulic system parameters
    System rated flow 40 L/min
    Rated working pressure 20 MPa
    Recommended power 15 kW
    Operating temperature -25℃—+40℃
    Hydraulic oil tank capacity 35 L
    Open full product page

    4T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as "truck-mounted crane") is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios. The truck-mounted crane is mainly composed of the following parts: Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle. Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system. Cargo box: used for loading goods, the length can be configured according to demand. Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.
  • 5T Crane
    ×
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane
    5T Crane

    5T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
    The truck-mounted crane is mainly composed of the following parts:
    Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
    Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
    Cargo box: used for loading goods, the length can be configured according to demand.
    Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.

    Category:

    Howo 5T Crane Truck Technical Parameters
    Parameter Value
    Engine WEICHAI WP2.3NQ140E62
    Horsepower 140 hp
    Transmission case FAST 8J45TA
    Driving method 2WD
    Carriage size 4.5*2.0*0.45m
    Tire model 7.00R16LT 10PR
    Wheelbase 3280 mm
    Braking method Air brake
    Other configuration air conditioner
    Other standard features Electric doors and windows+central locking, Hande axle, leaf spring: 3/8+6, power take-off
    5T Crane
    Maximum lifting weight 5000 Kg
    Maximum lifting moment 67 kN·m
    Maximum arm length 12.4 m
    Maximum lifting height 14.5 m
    Boom length 3.8-12.4 m
    Amplitude range 0-75°
    Rotation angle 360 degree continuous rotation
    Outrigger span 1.9-3.9 m
    Hydraulic system parameters
    System rated flow 40 L/min
    Rated working pressure 20 MPa
    Recommended power 15 kW
    Operating temperature -25℃—+40℃
    Hydraulic oil tank capacity 35 L
    Open full product page

    5T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as "truck-mounted crane") is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios. The truck-mounted crane is mainly composed of the following parts: Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle. Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system. Cargo box: used for loading goods, the length can be configured according to demand. Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.

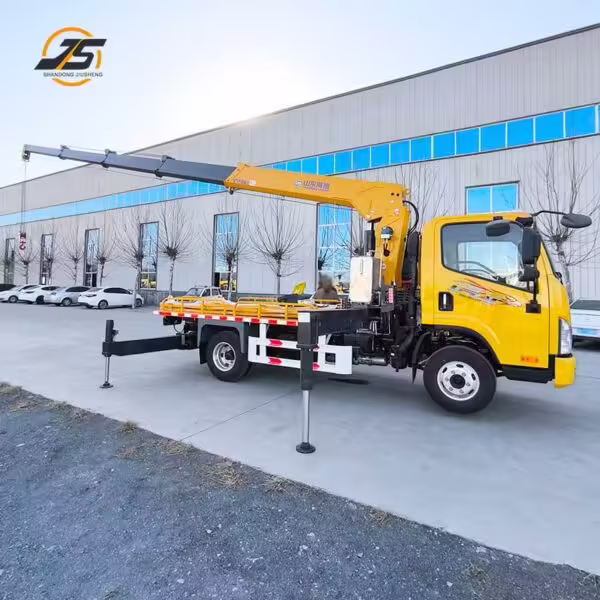

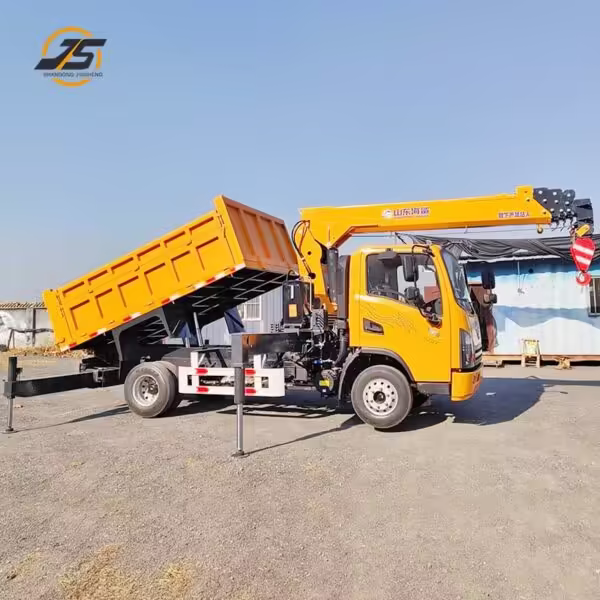

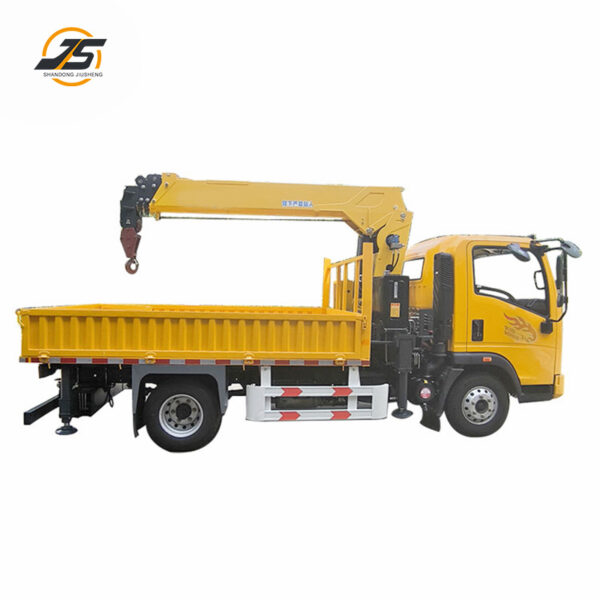

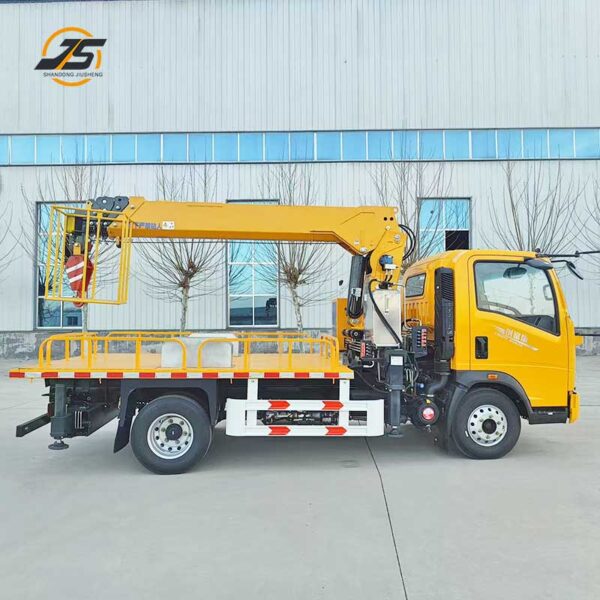

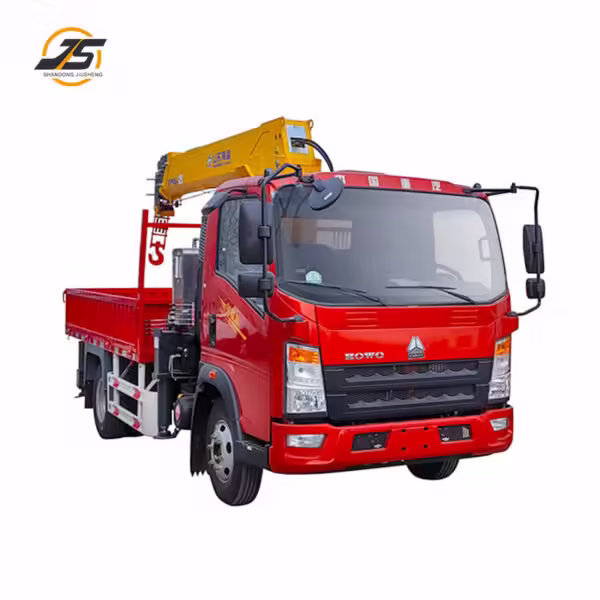

  • 6T Crane
    ×
    6T Crane
    6T Crane
    6T Crane
    6T Crane
    6T Crane
    6T Crane
    6T Crane
    6T Crane
    6T Crane
    6T Crane
    6T Crane
    6T Crane

    6T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
    The truck-mounted crane is mainly composed of the following parts:
    Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
    Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
    Cargo box: used for loading goods, the length can be configured according to demand.
    Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.

    Category:

    Howo 6T Crane Truck Technical Parameters
    Parameter Value
    Engine WEICHAI WP2.3NQ140E62
    Horsepower 140 hp
    Transmission case FAST 8J45TA
    Driving method 2WD
    Carriage size 4.5*2.0*0.45m
    Tire model 7.00R16LT 10PR
    Wheelbase 3280 mm
    Braking method Air brake
    Other configuration air conditioner
    Other standard features Electric doors and windows+central locking, Hande axle, leaf spring: 3/8+6, power take-off
    6T Crane
    Maximum lifting weight 6000 Kg
    Maximum lifting moment 150 kN·m
    Maximum arm length 14.4 m
    Maximum lifting height 16 m
    Boom length 3.8-12.4 m
    Amplitude range 0-75°
    Rotation angle 360 degree continuous rotation
    Outrigger quantity 2
    Outrigger span 2050~4500 mm
    Hydraulic system parameters
    System rated flow 40 L/min
    Rated working pressure 22 MPa
    Recommended power 15 kW
    Operating temperature -25℃—+40℃
    Hydraulic oil tank capacity 35 L
    Open full product page

    6T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as "truck-mounted crane") is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios. The truck-mounted crane is mainly composed of the following parts: Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle. Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system. Cargo box: used for loading goods, the length can be configured according to demand. Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.

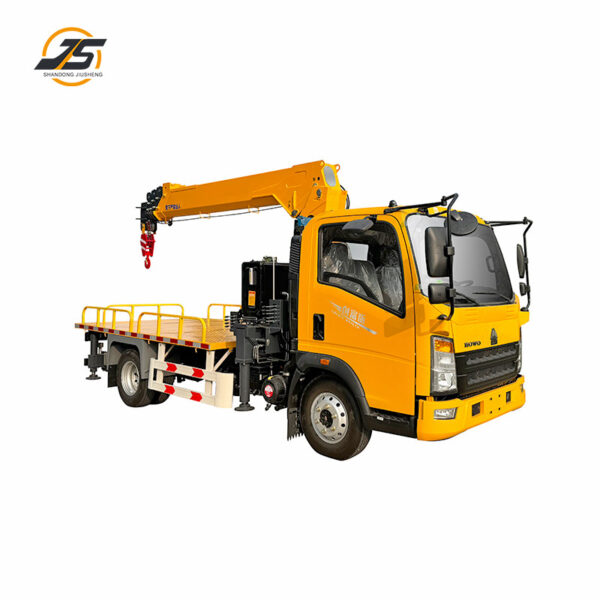

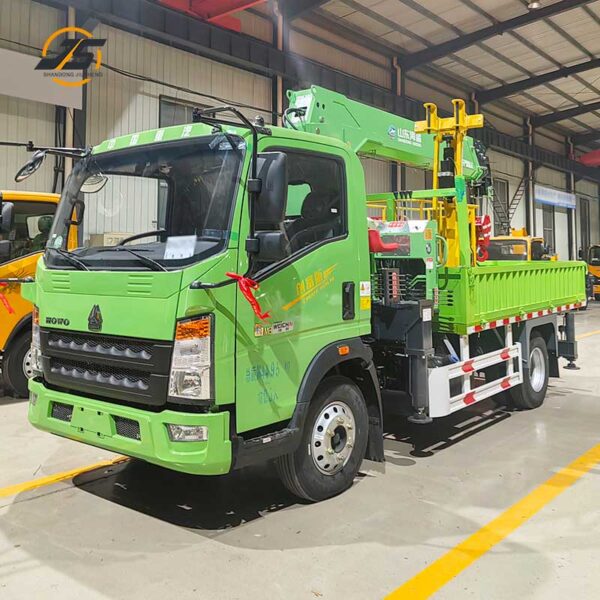

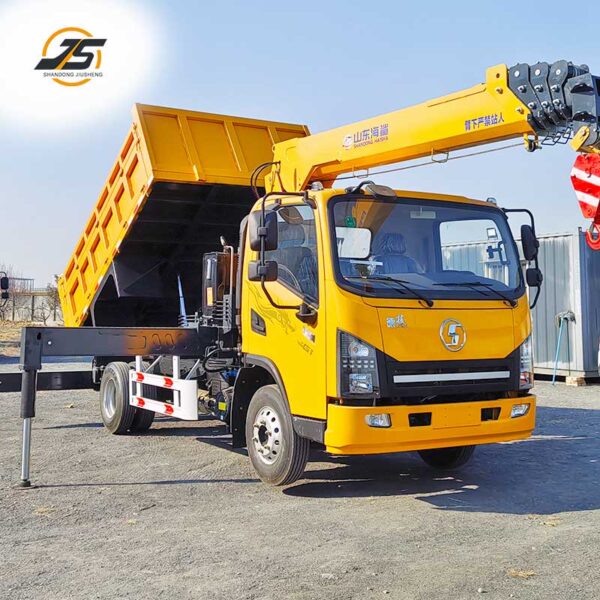

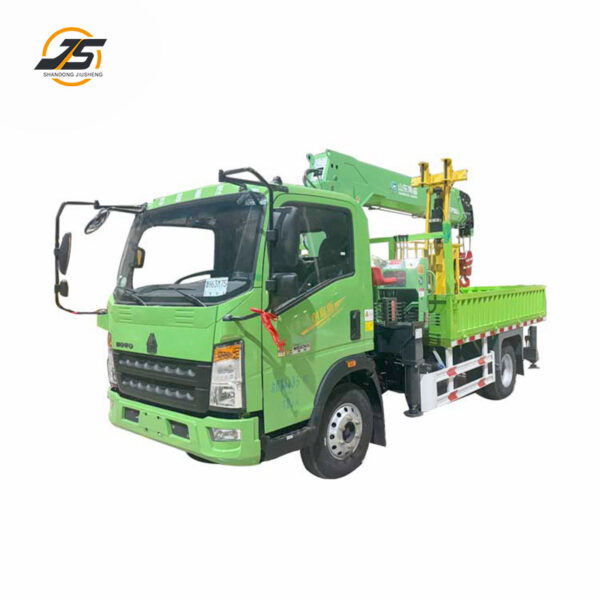

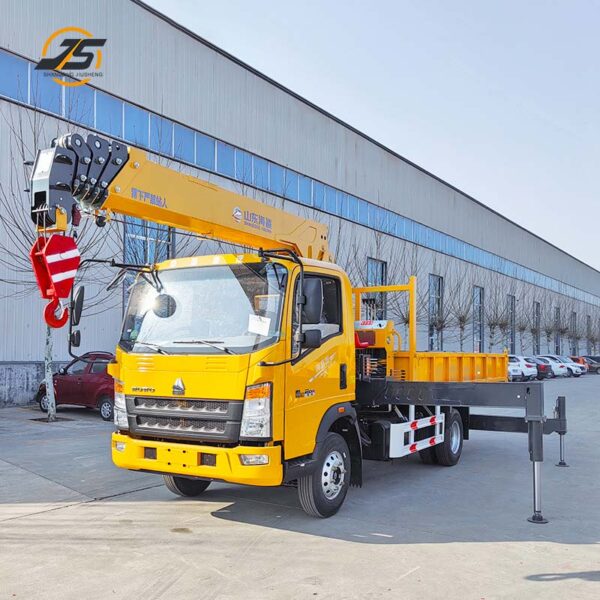

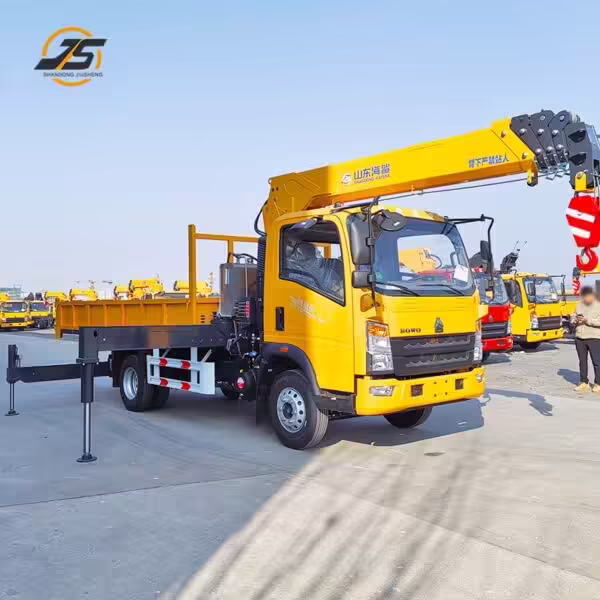

  • 8T Crane
    ×
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane
    8T Crane

    8T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
    The truck-mounted crane is mainly composed of the following parts:
    Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
    Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
    Cargo box: used for loading goods, the length can be configured according to demand.
    Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.

    Category:

    Howo 8T Crane Truck Technical Parameters
    Parameter Value
    Brand Howo
    Engine Yunnei 160 horsepower
    Horsepower 160 hp
    Maximum load 10T/6T
    Transmission case 8J45TA
    Driving method 2WD
    Carriage size 4.5*2.0*0.45m
    Tire model 7.00R16LT 8PR
    Wheelbase 3280 mm
    Braking method Air brake
    Cab 1880/Single row
    Other configuration air conditioner
    Other standard features Electric doors and windows+central locking, Hande axle, leaf spring: 3/8+6, power take-off
    8T Crane
    Maximum lifting weight 8000 Kg
    Maximum lifting moment 120 kN·m
    Maximum arm length 13.4 m
    Maximum lifting height 15 m
    Boom length 3.8-12.4 m
    Amplitude range 0-75°
    Rotation angle 360 degree continuous rotation
    Outrigger quantity 2
    Outrigger span 2050~4500 mm
    Hydraulic system parameters
    System rated flow 40 L/min
    Rated working pressure 22 MPa
    Recommended power 15 kW
    Operating temperature -25℃—+40℃
    Hydraulic oil tank capacity 35 L
    Open full product page

    8T Crane

    Truck-mounted crane transport vehicle (hereinafter referred to as "truck-mounted crane") is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios. The truck-mounted crane is mainly composed of the following parts: Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle. Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system. Cargo box: used for loading goods, the length can be configured according to demand. Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.
