  • 3T Marine Cranes
    ×

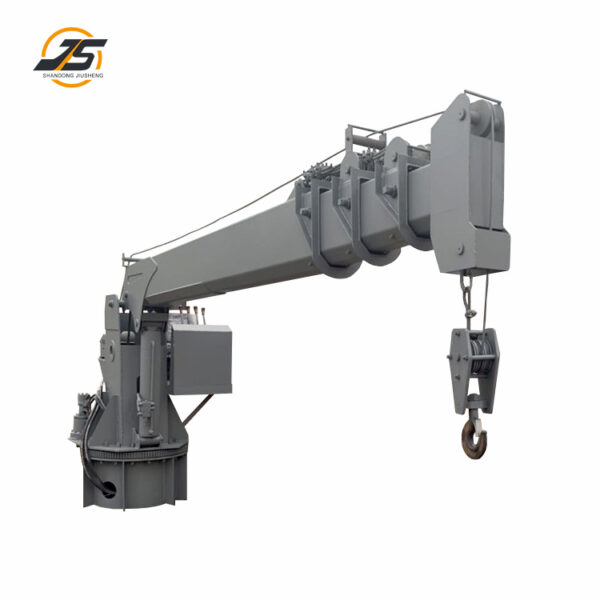

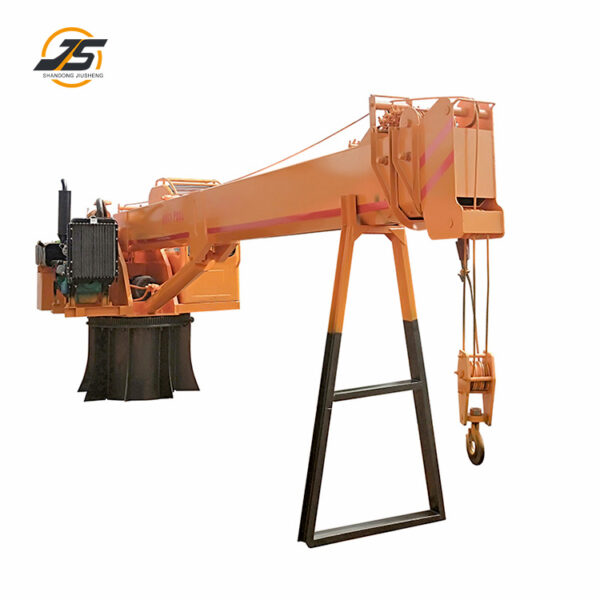

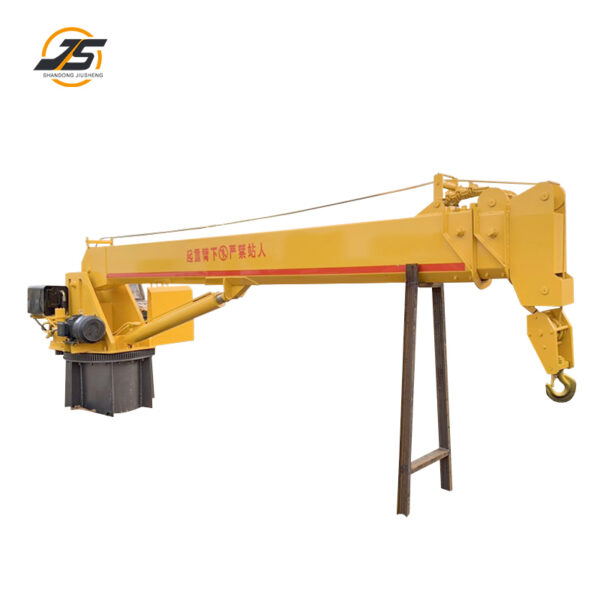

    3T Marine Cranes
    3T Marine Cranes
    3T Marine Cranes
    3T Marine Cranes
    3T Marine Cranes
    3T Marine Cranes
    3T Marine Cranes
    3T Marine Cranes

    3T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality.

    I. Core Components:

    Boom: Telescopic or foldable to enable cargo lifting at various radii.

    Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility.

    Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo.

    Power System: Typically driven by the ship’s built-in motor or hydraulic system.

    II. Advantages:

    High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions.

    Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs.

    Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions.

    Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

    Category:
    Main Technical Parameters of 3-20 Tons Marine Crane
    Model 3T 5T 8T 10T 12T 16T 20T
    Maximum Lifting Load 3000kg 5000kg 8000kg 10000kg 12000kg 16000kg 20000kg
    Maximum Lifting Height 9m 13m 26m 30m 31m 33m 34m
    U-Shaped Boom 3 m *4 Knots 4 m *4 Knots 6 m *5 Knots 6 m *5 Knots 7 m *5 Knots 7.5 m *5 Knots 8 m *5 Knots
    Hydraulic Winch 3T 5T 8T 10T 12T 16T 20T
    Reduction Type Number 3T Planetary Reducer 5T Planetary Reducer 8T Planetary Reducer 10T Planetary Reducer 12T Planetary Reducer 16T Planetary Reducer Double Planetary Gearbox
    External Dimensions 4.5*1.5m 5.5*1.8m 8.7*2.1m 8*2.1m 9.8*2.35m 10.65*2.4m 双二级行星减速机
    Motor Power 7.5kw 11kw 15kw 15kw 15kw 19kw 22kw
    Lifting Speed 45m/min 45m/min 45m/min 45m/min 80m/min 80m/min 80m/min
    Speed 2.8r/min 2.8r/min 3.2r/min 2.8r/min 2.8r/min 2.6r/min 2.8r/min
    Weight 1.2T 2.2T 3.5T 5T 5.5T 6.5T 9T
    Optional Diesel Engine or Electric Motor
    Operation Ground Operation, Mid-Air Operation
    Chassis 600mm Rotary Table 800mm Rotary Table 1000mm Rotary Table 1200mm Rotary Table 1200mm Thickened Rotary Table 1400mm Rotary Table 1400mm Double Row Ball Bearing
    Wire Rope 30-200 m
    Oil Cylinder Vertical Roof Variable Amplitude Cylinder Vertical Roof Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder
    Base Height 50cm 50cm 50cm 50cm 50cm 50cm 50cm
    Open full product page

    3T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality. I. Core Components: Boom: Telescopic or foldable to enable cargo lifting at various radii. Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility. Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo. Power System: Typically driven by the ship’s built-in motor or hydraulic system. II. Advantages: High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions. Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs. Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions. Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

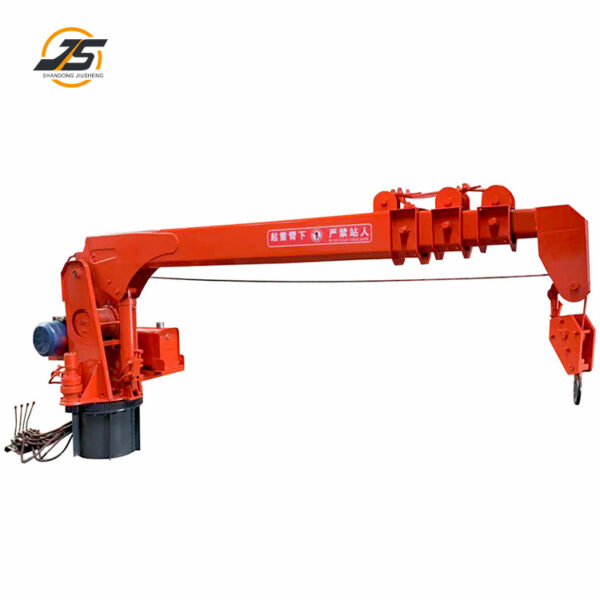

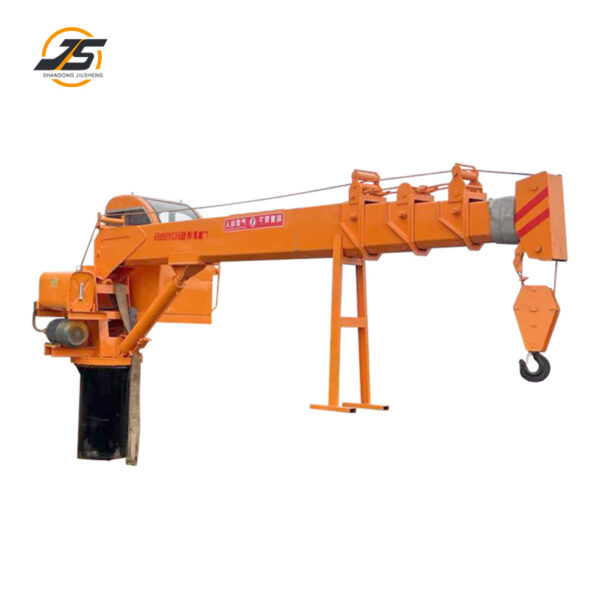

  • 5T Marine Cranes
    ×

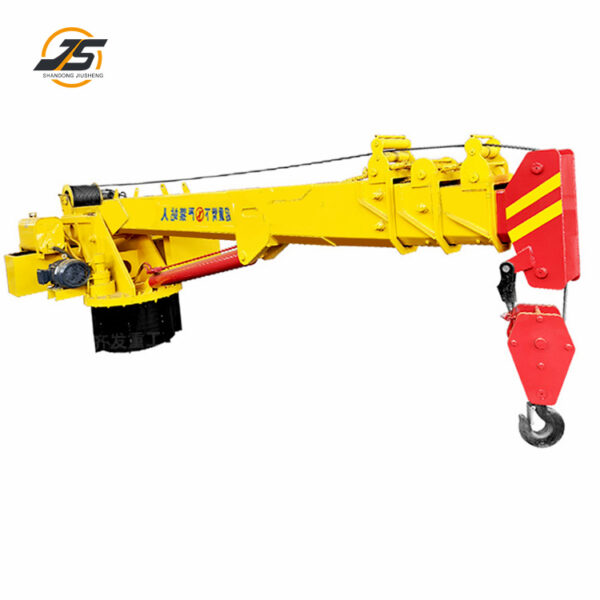

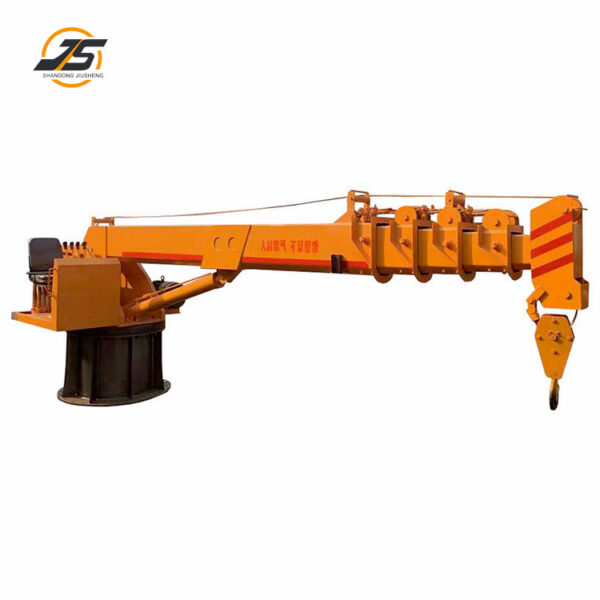

    5T Marine Cranes
    5T Marine Cranes
    5T Marine Cranes
    5T Marine Cranes
    5T Marine Cranes
    5T Marine Cranes
    5T Marine Cranes
    5T Marine Cranes
    5T Marine Cranes
    5T Marine Cranes

    5T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality.

    I. Core Components:

    Boom: Telescopic or foldable to enable cargo lifting at various radii.

    Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility.

    Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo.

    Power System: Typically driven by the ship’s built-in motor or hydraulic system.

    II. Advantages:

    High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions.

    Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs.

    Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions.

    Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

    Category:
    Main Technical Parameters of 3-20 Tons Marine Crane
    Model 3T 5T 8T 10T 12T 16T 20T
    Maximum Lifting Load 3000kg 5000kg 8000kg 10000kg 12000kg 16000kg 20000kg
    Maximum Lifting Height 9m 13m 26m 30m 31m 33m 34m
    U-Shaped Boom 3 m *4 Knots 4 m *4 Knots 6 m *5 Knots 6 m *5 Knots 7 m *5 Knots 7.5 m *5 Knots 8 m *5 Knots
    Hydraulic Winch 3T 5T 8T 10T 12T 16T 20T
    Reduction Type Number 3T Planetary Reducer 5T Planetary Reducer 8T Planetary Reducer 10T Planetary Reducer 12T Planetary Reducer 16T Planetary Reducer Double Planetary Gearbox
    External Dimensions 4.5*1.5m 5.5*1.8m 8.7*2.1m 8*2.1m 9.8*2.35m 10.65*2.4m 双二级行星减速机
    Motor Power 7.5kw 11kw 15kw 15kw 15kw 19kw 22kw
    Lifting Speed 45m/min 45m/min 45m/min 45m/min 80m/min 80m/min 80m/min
    Speed 2.8r/min 2.8r/min 3.2r/min 2.8r/min 2.8r/min 2.6r/min 2.8r/min
    Weight 1.2T 2.2T 3.5T 5T 5.5T 6.5T 9T
    Optional Diesel Engine or Electric Motor
    Operation Ground Operation, Mid-Air Operation
    Chassis 600mm Rotary Table 800mm Rotary Table 1000mm Rotary Table 1200mm Rotary Table 1200mm Thickened Rotary Table 1400mm Rotary Table 1400mm Double Row Ball Bearing
    Wire Rope 30-200 m
    Oil Cylinder Vertical Roof Variable Amplitude Cylinder Vertical Roof Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder
    Base Height 50cm 50cm 50cm 50cm 50cm 50cm 50cm
    Open full product page

    5T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality. I. Core Components: Boom: Telescopic or foldable to enable cargo lifting at various radii. Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility. Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo. Power System: Typically driven by the ship’s built-in motor or hydraulic system. II. Advantages: High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions. Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs. Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions. Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

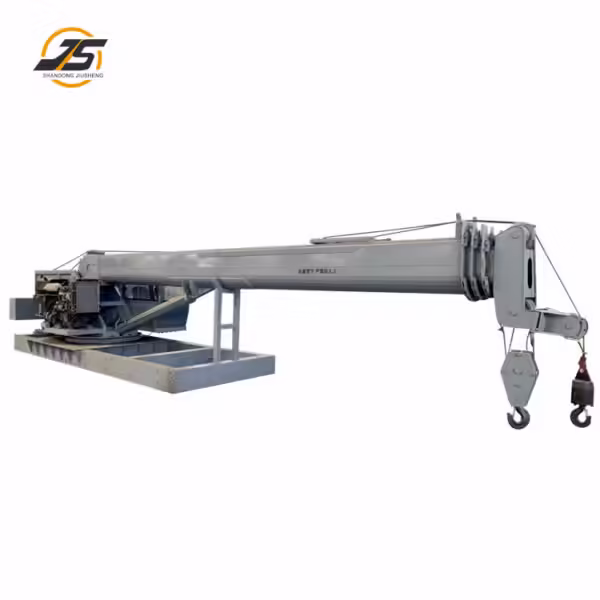

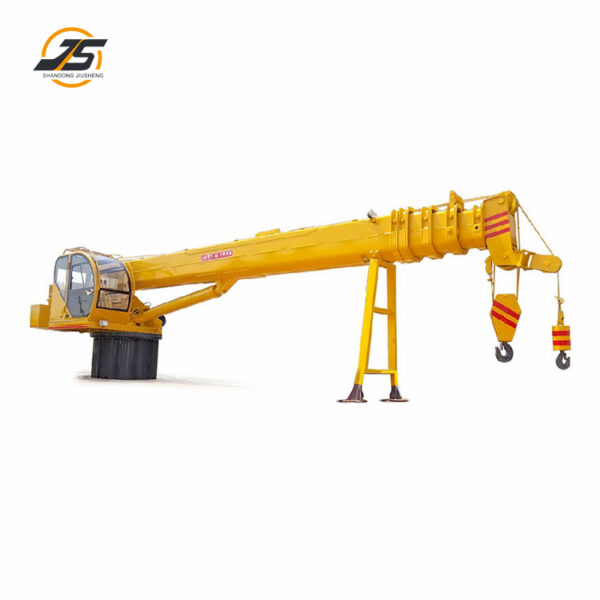

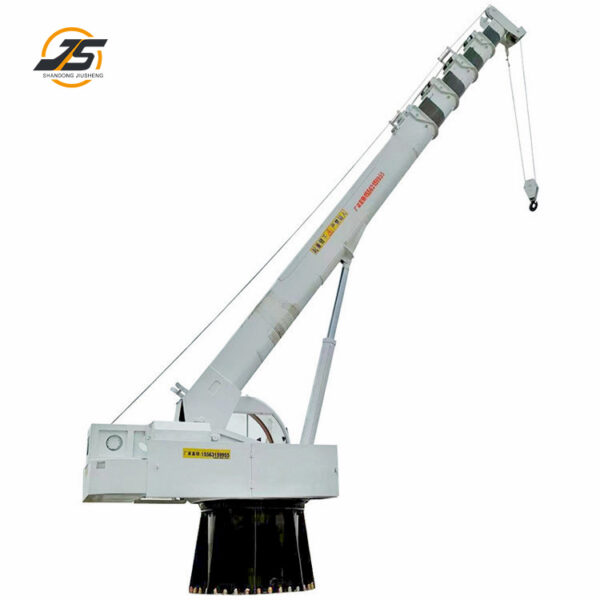

  • 6T Marine Cranes
    ×

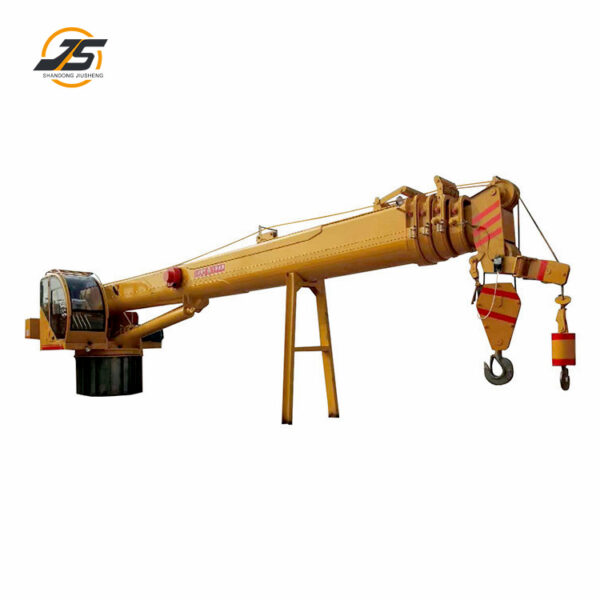

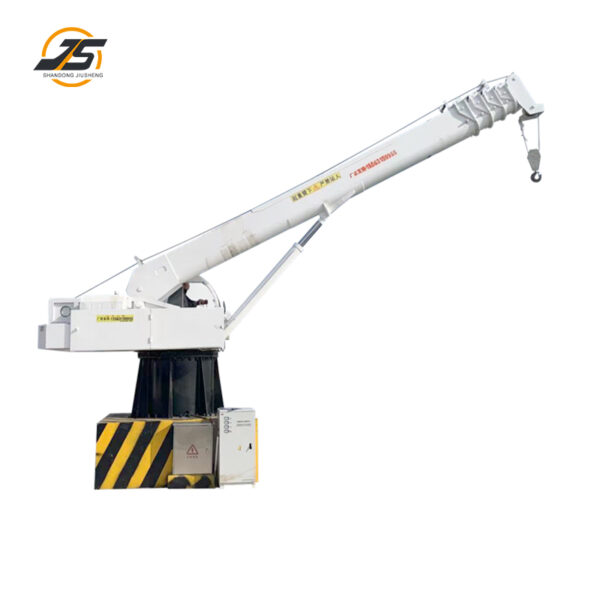

    6T Marine Cranes
    6T Marine Cranes
    6T Marine Cranes
    6T Marine Cranes
    6T Marine Cranes
    6T Marine Cranes
    6T Marine Cranes
    6T Marine Cranes
    6T Marine Cranes
    6T Marine Cranes

    6T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality.

    I. Core Components:

    Boom: Telescopic or foldable to enable cargo lifting at various radii.

    Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility.

    Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo.

    Power System: Typically driven by the ship’s built-in motor or hydraulic system.

    II. Advantages:

    High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions.

    Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs.

    Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions.

    Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

    Category:
    Main Technical Parameters of 3-20 Tons Marine Crane
    Model 3T 5T 8T 10T 12T 16T 20T
    Maximum Lifting Load 3000kg 5000kg 8000kg 10000kg 12000kg 16000kg 20000kg
    Maximum Lifting Height 9m 13m 26m 30m 31m 33m 34m
    U-Shaped Boom 3 m *4 Knots 4 m *4 Knots 6 m *5 Knots 6 m *5 Knots 7 m *5 Knots 7.5 m *5 Knots 8 m *5 Knots
    Hydraulic Winch 3T 5T 8T 10T 12T 16T 20T
    Reduction Type Number 3T Planetary Reducer 5T Planetary Reducer 8T Planetary Reducer 10T Planetary Reducer 12T Planetary Reducer 16T Planetary Reducer Double Planetary Gearbox
    External Dimensions 4.5*1.5m 5.5*1.8m 8.7*2.1m 8*2.1m 9.8*2.35m 10.65*2.4m 双二级行星减速机
    Motor Power 7.5kw 11kw 15kw 15kw 15kw 19kw 22kw
    Lifting Speed 45m/min 45m/min 45m/min 45m/min 80m/min 80m/min 80m/min
    Speed 2.8r/min 2.8r/min 3.2r/min 2.8r/min 2.8r/min 2.6r/min 2.8r/min
    Weight 1.2T 2.2T 3.5T 5T 5.5T 6.5T 9T
    Optional Diesel Engine or Electric Motor
    Operation Ground Operation, Mid-Air Operation
    Chassis 600mm Rotary Table 800mm Rotary Table 1000mm Rotary Table 1200mm Rotary Table 1200mm Thickened Rotary Table 1400mm Rotary Table 1400mm Double Row Ball Bearing
    Wire Rope 30-200 m
    Oil Cylinder Vertical Roof Variable Amplitude Cylinder Vertical Roof Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder
    Base Height 50cm 50cm 50cm 50cm 50cm 50cm 50cm
    Open full product page

    6T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality. I. Core Components: Boom: Telescopic or foldable to enable cargo lifting at various radii. Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility. Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo. Power System: Typically driven by the ship’s built-in motor or hydraulic system. II. Advantages: High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions. Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs. Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions. Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.
  • 8T Marine Cranes
    ×

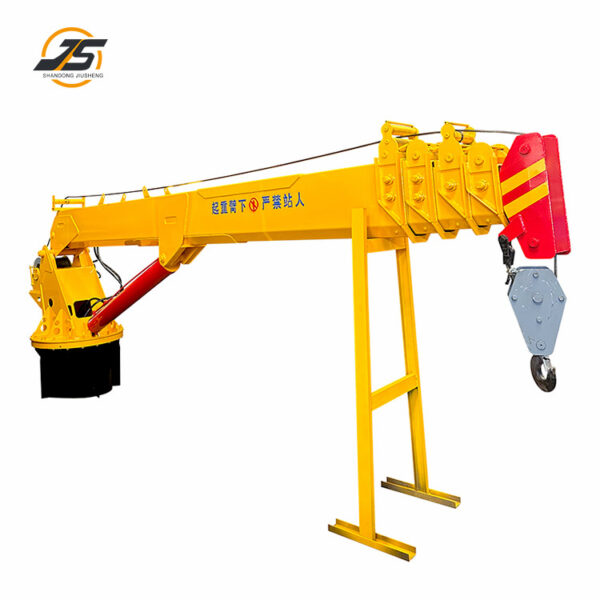

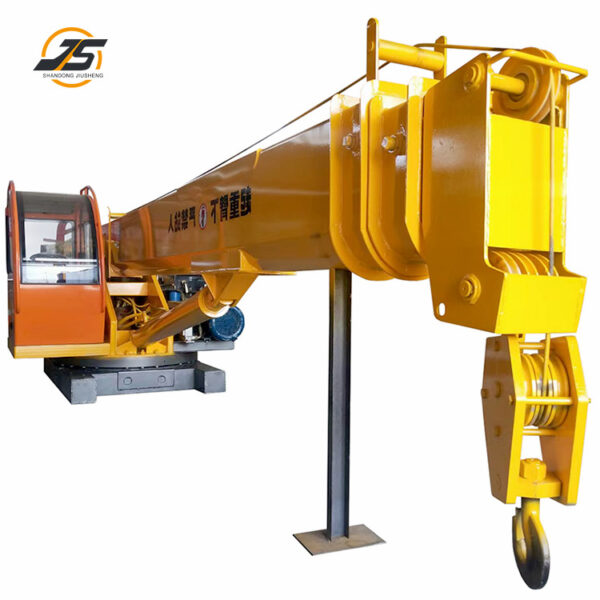

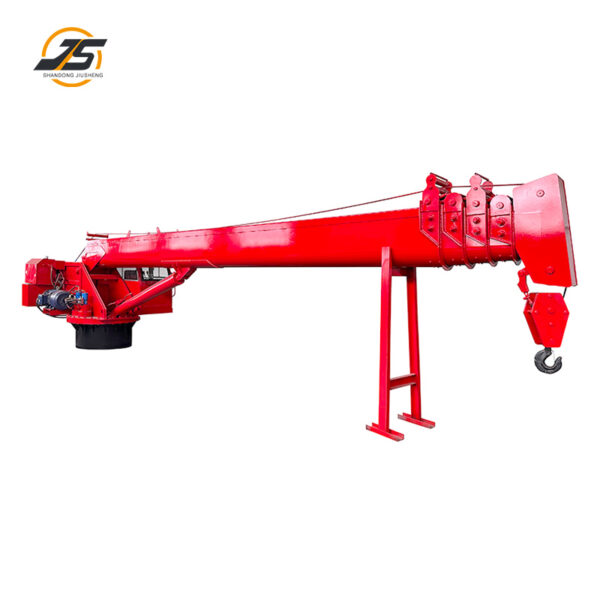

    8T Marine Cranes
    8T Marine Cranes
    8T Marine Cranes
    8T Marine Cranes
    8T Marine Cranes
    8T Marine Cranes
    8T Marine Cranes
    8T Marine Cranes

    8T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality.

    I. Core Components:

    Boom: Telescopic or foldable to enable cargo lifting at various radii.

    Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility.

    Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo.

    Power System: Typically driven by the ship’s built-in motor or hydraulic system.

    II. Advantages:

    High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions.

    Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs.

    Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions.

    Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

    Category:
    Main Technical Parameters of 3-20 Tons Marine Crane
    Model 3T 5T 8T 10T 12T 16T 20T
    Maximum Lifting Load 3000kg 5000kg 8000kg 10000kg 12000kg 16000kg 20000kg
    Maximum Lifting Height 9m 13m 26m 30m 31m 33m 34m
    U-Shaped Boom 3 m *4 Knots 4 m *4 Knots 6 m *5 Knots 6 m *5 Knots 7 m *5 Knots 7.5 m *5 Knots 8 m *5 Knots
    Hydraulic Winch 3T 5T 8T 10T 12T 16T 20T
    Reduction Type Number 3T Planetary Reducer 5T Planetary Reducer 8T Planetary Reducer 10T Planetary Reducer 12T Planetary Reducer 16T Planetary Reducer Double Planetary Gearbox
    External Dimensions 4.5*1.5m 5.5*1.8m 8.7*2.1m 8*2.1m 9.8*2.35m 10.65*2.4m 双二级行星减速机
    Motor Power 7.5kw 11kw 15kw 15kw 15kw 19kw 22kw
    Lifting Speed 45m/min 45m/min 45m/min 45m/min 80m/min 80m/min 80m/min
    Speed 2.8r/min 2.8r/min 3.2r/min 2.8r/min 2.8r/min 2.6r/min 2.8r/min
    Weight 1.2T 2.2T 3.5T 5T 5.5T 6.5T 9T
    Optional Diesel Engine or Electric Motor
    Operation Ground Operation, Mid-Air Operation
    Chassis 600mm Rotary Table 800mm Rotary Table 1000mm Rotary Table 1200mm Rotary Table 1200mm Thickened Rotary Table 1400mm Rotary Table 1400mm Double Row Ball Bearing
    Wire Rope 30-200 m
    Oil Cylinder Vertical Roof Variable Amplitude Cylinder Vertical Roof Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder
    Base Height 50cm 50cm 50cm 50cm 50cm 50cm 50cm
    Open full product page

    8T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality. I. Core Components: Boom: Telescopic or foldable to enable cargo lifting at various radii. Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility. Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo. Power System: Typically driven by the ship’s built-in motor or hydraulic system. II. Advantages: High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions. Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs. Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions. Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

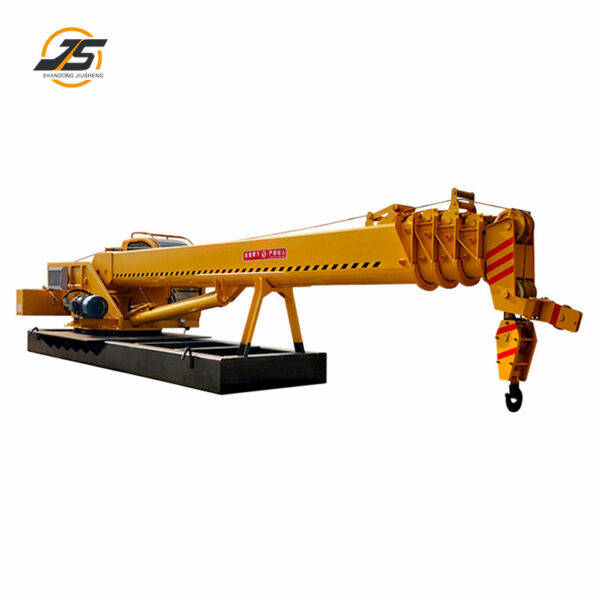

  • 12T Marine Cranes
    ×

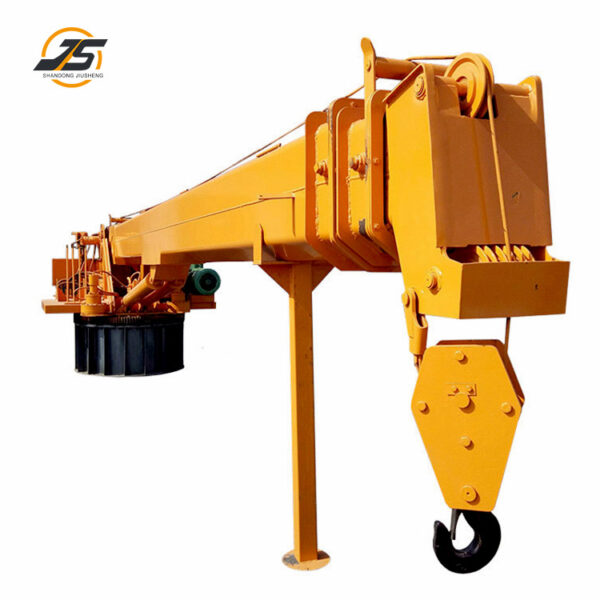

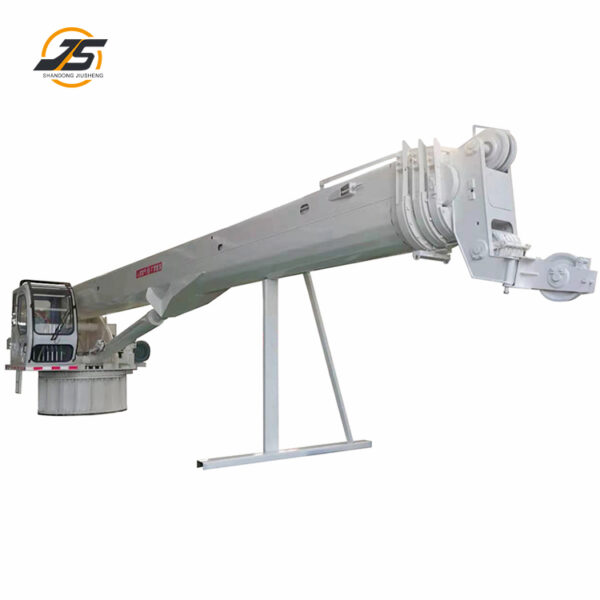

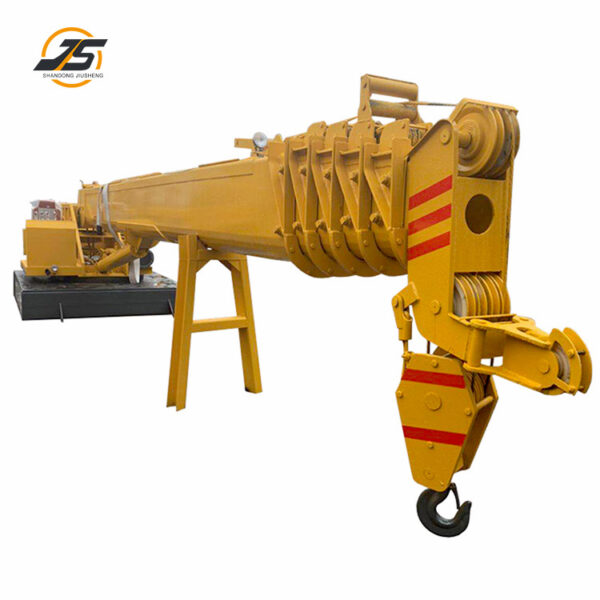

    12T Marine Cranes
    12T Marine Cranes
    12T Marine Cranes
    12T Marine Cranes
    12T Marine Cranes
    12T Marine Cranes
    12T Marine Cranes
    12T Marine Cranes
    12T Marine Cranes
    12T Marine Cranes

    12T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality.

    I. Core Components:

    Boom: Telescopic or foldable to enable cargo lifting at various radii.

    Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility.

    Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo.

    Power System: Typically driven by the ship’s built-in motor or hydraulic system.

    II. Advantages:

    High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions.

    Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs.

    Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions.

    Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

    Category:
    Main Technical Parameters of 3-20 Tons Marine Crane
    Model 3T 5T 8T 10T 12T 16T 20T
    Maximum Lifting Load 3000kg 5000kg 8000kg 10000kg 12000kg 16000kg 20000kg
    Maximum Lifting Height 9m 13m 26m 30m 31m 33m 34m
    U-Shaped Boom 3 m *4 Knots 4 m *4 Knots 6 m *5 Knots 6 m *5 Knots 7 m *5 Knots 7.5 m *5 Knots 8 m *5 Knots
    Hydraulic Winch 3T 5T 8T 10T 12T 16T 20T
    Reduction Type Number 3T Planetary Reducer 5T Planetary Reducer 8T Planetary Reducer 10T Planetary Reducer 12T Planetary Reducer 16T Planetary Reducer Double Planetary Gearbox
    External Dimensions 4.5*1.5m 5.5*1.8m 8.7*2.1m 8*2.1m 9.8*2.35m 10.65*2.4m 双二级行星减速机
    Motor Power 7.5kw 11kw 15kw 15kw 15kw 19kw 22kw
    Lifting Speed 45m/min 45m/min 45m/min 45m/min 80m/min 80m/min 80m/min
    Speed 2.8r/min 2.8r/min 3.2r/min 2.8r/min 2.8r/min 2.6r/min 2.8r/min
    Weight 1.2T 2.2T 3.5T 5T 5.5T 6.5T 9T
    Optional Diesel Engine or Electric Motor
    Operation Ground Operation, Mid-Air Operation
    Chassis 600mm Rotary Table 800mm Rotary Table 1000mm Rotary Table 1200mm Rotary Table 1200mm Thickened Rotary Table 1400mm Rotary Table 1400mm Double Row Ball Bearing
    Wire Rope 30-200 m
    Oil Cylinder Vertical Roof Variable Amplitude Cylinder Vertical Roof Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder
    Base Height 50cm 50cm 50cm 50cm 50cm 50cm 50cm
    Open full product page

    12T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality. I. Core Components: Boom: Telescopic or foldable to enable cargo lifting at various radii. Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility. Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo. Power System: Typically driven by the ship’s built-in motor or hydraulic system. II. Advantages: High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions. Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs. Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions. Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

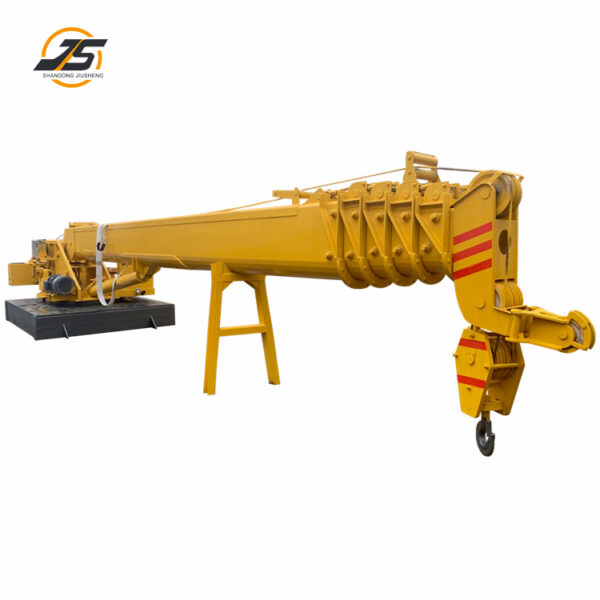

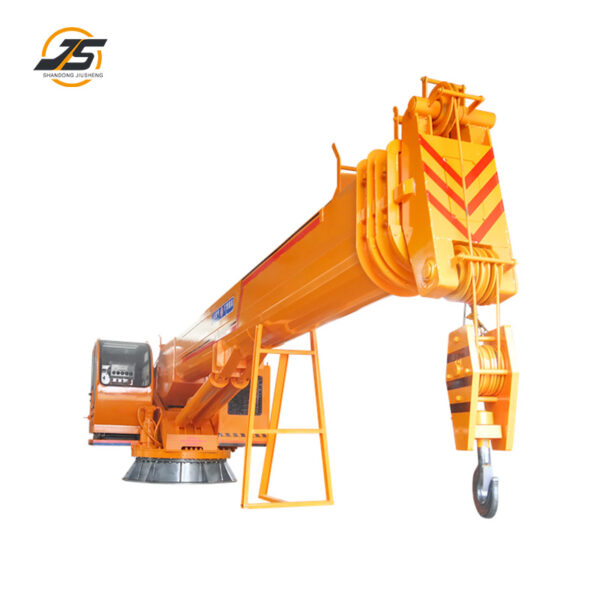

  • 16T Marine Cranes
    ×

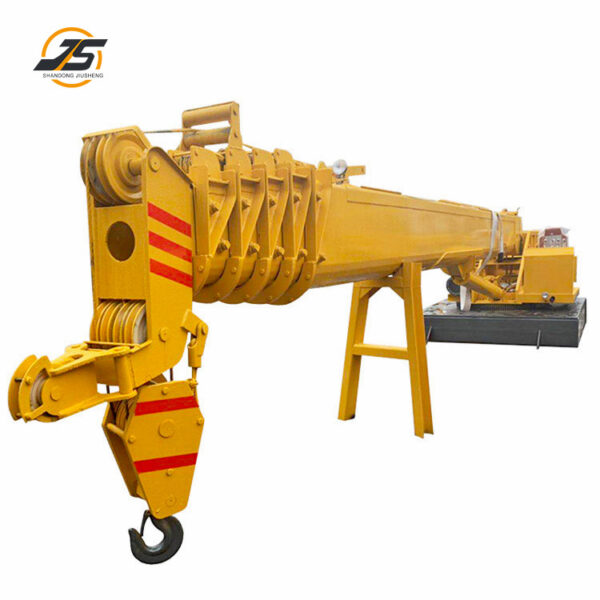

    16T Marine Cranes
    16T Marine Cranes
    16T Marine Cranes
    16T Marine Cranes
    16T Marine Cranes
    16T Marine Cranes

    16T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality.

    I. Core Components:

    Boom: Telescopic or foldable to enable cargo lifting at various radii.

    Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility.

    Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo.

    Power System: Typically driven by the ship’s built-in motor or hydraulic system.

    II. Advantages:

    High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions.

    Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs.

    Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions.

    Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.

    Category:
    Main Technical Parameters of 3-20 Tons Marine Crane
    Model 3T 5T 8T 10T 12T 16T 20T
    Maximum Lifting Load 3000kg 5000kg 8000kg 10000kg 12000kg 16000kg 20000kg
    Maximum Lifting Height 9m 13m 26m 30m 31m 33m 34m
    U-Shaped Boom 3 m *4 Knots 4 m *4 Knots 6 m *5 Knots 6 m *5 Knots 7 m *5 Knots 7.5 m *5 Knots 8 m *5 Knots
    Hydraulic Winch 3T 5T 8T 10T 12T 16T 20T
    Reduction Type Number 3T Planetary Reducer 5T Planetary Reducer 8T Planetary Reducer 10T Planetary Reducer 12T Planetary Reducer 16T Planetary Reducer Double Planetary Gearbox
    External Dimensions 4.5*1.5m 5.5*1.8m 8.7*2.1m 8*2.1m 9.8*2.35m 10.65*2.4m 双二级行星减速机
    Motor Power 7.5kw 11kw 15kw 15kw 15kw 19kw 22kw
    Lifting Speed 45m/min 45m/min 45m/min 45m/min 80m/min 80m/min 80m/min
    Speed 2.8r/min 2.8r/min 3.2r/min 2.8r/min 2.8r/min 2.6r/min 2.8r/min
    Weight 1.2T 2.2T 3.5T 5T 5.5T 6.5T 9T
    Optional Diesel Engine or Electric Motor
    Operation Ground Operation, Mid-Air Operation
    Chassis 600mm Rotary Table 800mm Rotary Table 1000mm Rotary Table 1200mm Rotary Table 1200mm Thickened Rotary Table 1400mm Rotary Table 1400mm Double Row Ball Bearing
    Wire Rope 30-200 m
    Oil Cylinder Vertical Roof Variable Amplitude Cylinder Vertical Roof Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder Tilt Top Variable Amplitude Cylinder
    Base Height 50cm 50cm 50cm 50cm 50cm 50cm 50cm
    Open full product page

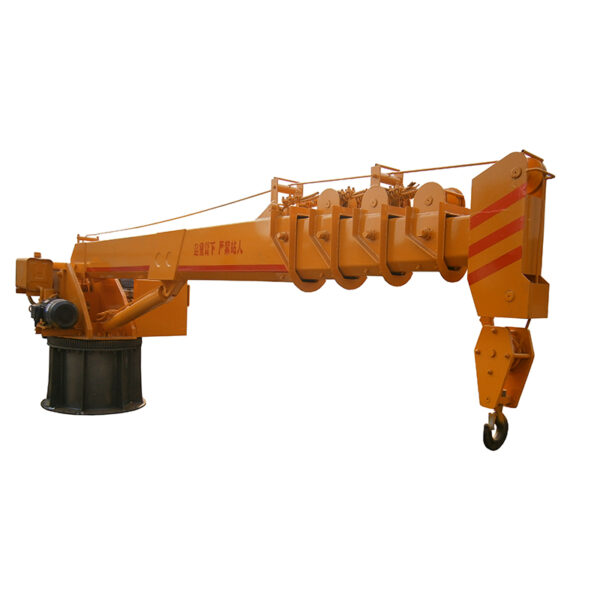

    16T Marine Cranes

    Marine cranes are lifting equipment installed on ship decks, primarily used for cargo handling, equipment installation, and underwater operations. Their design must adapt to marine environments, offering high flexibility and multifunctionality. I. Core Components: Boom: Telescopic or foldable to enable cargo lifting at various radii. Slewing Mechanism: Supports 360-degree rotation, enhancing operational flexibility. Hoisting Mechanism: Includes winches, wire ropes, and hooks for lifting and lowering cargo. Power System: Typically driven by the ship’s built-in motor or hydraulic system. II. Advantages: High Flexibility: 360-degree rotation and adjustable boom adapt to complex working conditions. Multifunctionality: Integrates lifting, transporting, and positioning functions, reducing equipment switching costs. Environmental Adaptability: Features anti-corrosion materials and sealed designs for stable operation in harsh sea conditions. Marine cranes are essential for port cargo handling, particularly suited for bulk goods, containers, and heavy equipment lifting.
Load More
Help Center

Get Answers to Your Questions

At Shandong Jiusheng, we prioritize your experience in customizing your lifting equipment.
How to start customization?
Visit our site, select the product, click “Customize Now”, fill in requirements and submit.
Yes. Our team provides preliminary designs for your review after you submit basic info.
Working scenarios, performance needs, special designs, and contact details.
Early minor changes allowed; contact us promptly for adjustments.
Yes, a deposit (50% of the total cost) is required to get started.
Sure. Submit requirements and our team will provide a detailed quote.
Start a customized solution

Want to build your own lifting equipment?

Get a Quote Right Now

What we offer

Make every customization precise and innovative

Shandong Jiusheng Intelligent Equipment Co., Ltd. is a high-tech enterprise integrating the research and development, production and sales of crane equipment. The company has many product patents, direct supply from the factory, no middlemen, adhering to the concept of green win-win, closely connected with customers, establishing strategic partnerships, constantly improving product performance, and wholeheartedly providing customers with valuable equipment.

R&D Strength

Shandong Jiusheng is a high-tech enterprise with many product patents and a good reputation.

Custom processing

Advanced R&D team supports customized production and accurately adapts to the needs of multiple scenarios.

quality assurance

Carefully selected materials, refined craftsmanship, and multiple certifications to ensure quality.

transportation

Global logistics coverage, accurate delivery to the customer's designated location.

Technical training

Provide video training and operation guidance to solve customer problems remotely.

After-sales guarantee

The product is guaranteed for one year, and the 7*24 hours online customer service responds to your needs.
en_USEnglish
ru_RURussian fr_FRFrench es_ESSpanish arArabic en_USEnglish
