| Howo 6T Crane Truck Technical Parameters | |
| Parameter | Value |
| Engine | WEICHAI WP2.3NQ140E62 |
| Horsepower | 140 hp |
| Transmission case | FAST 8J45TA |
| Driving method | 2WD |
| Carriage size | 4.5*2.0*0.45m |
| Tire model | 7.00R16LT 10PR |
| Wheelbase | 3280 mm |
| Braking method | Air brake |
| Other configuration | air conditioner |
| Other standard features | Electric doors and windows+central locking, Hande axle, leaf spring: 3/8+6, power take-off |
| 6T Crane | |
| Maximum lifting weight | 6000 Kg |
| Maximum lifting moment | 150 kN·m |
| Maximum arm length | 14.4 m |
| Maximum lifting height | 16 m |
| Boom length | 3.8-12.4 m |
| Amplitude range | 0-75° |
| Rotation angle | 360 degree continuous rotation |
| Outrigger quantity | 2 |
| Outrigger span | 2050~4500 mm |
| Hydraulic system parameters | |
| System rated flow | 40 L/min |
| Rated working pressure | 22 MPa |
| Recommended power | 15 kW |
| Operating temperature | -25℃—+40℃ |
| Hydraulic oil tank capacity | 35 L |
Contact Details
Telephone
+86 153 7656 0472
Address
Beinantian Village South Head, Changgou Town, Jining, Shandong, China
-
×
6T Crane
Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
The truck-mounted crane is mainly composed of the following parts:
Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
Cargo box: used for loading goods, the length can be configured according to demand.
Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.Open full product page6T Crane
-
×
8T Crane
Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
The truck-mounted crane is mainly composed of the following parts:
Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
Cargo box: used for loading goods, the length can be configured according to demand.
Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.Open full product pageHowo 8T Crane Truck Technical Parameters Parameter Value Brand Howo Engine Yunnei 160 horsepower Horsepower 160 hp Maximum load 10T/6T Transmission case 8J45TA Driving method 2WD Carriage size 4.5*2.0*0.45m Tire model 7.00R16LT 8PR Wheelbase 3280 mm Braking method Air brake Cab 1880/Single row Other configuration air conditioner Other standard features Electric doors and windows+central locking, Hande axle, leaf spring: 3/8+6, power take-off 8T Crane Maximum lifting weight 8000 Kg Maximum lifting moment 120 kN·m Maximum arm length 13.4 m Maximum lifting height 15 m Boom length 3.8-12.4 m Amplitude range 0-75° Rotation angle 360 degree continuous rotation Outrigger quantity 2 Outrigger span 2050~4500 mm Hydraulic system parameters System rated flow 40 L/min Rated working pressure 22 MPa Recommended power 15 kW Operating temperature -25℃—+40℃ Hydraulic oil tank capacity 35 L 8T Crane
-
×

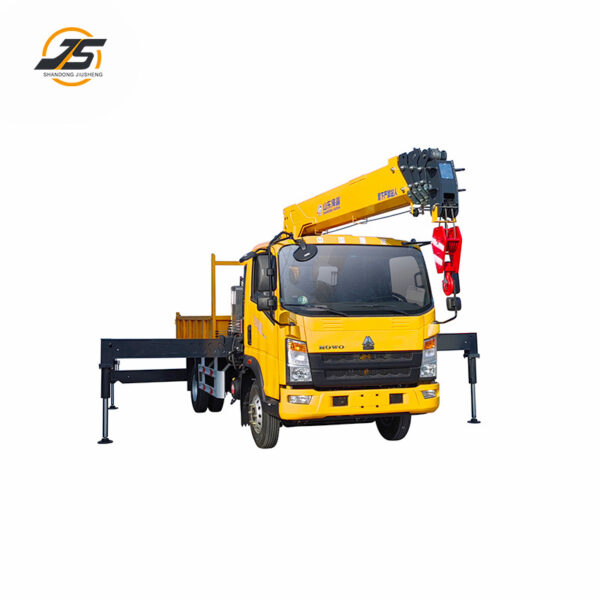

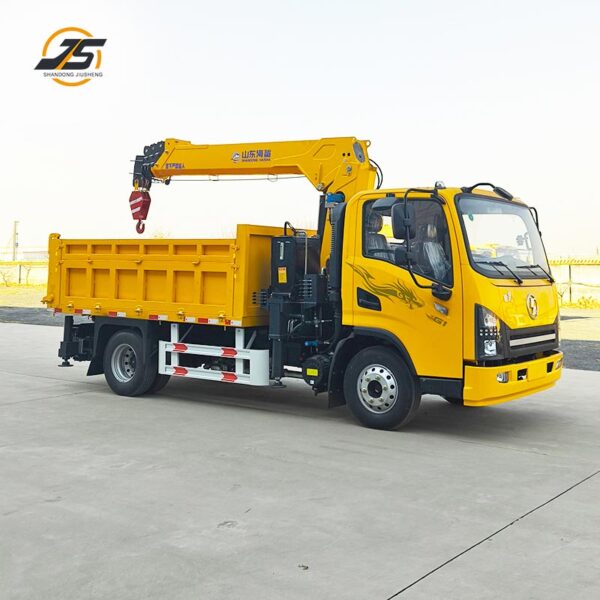

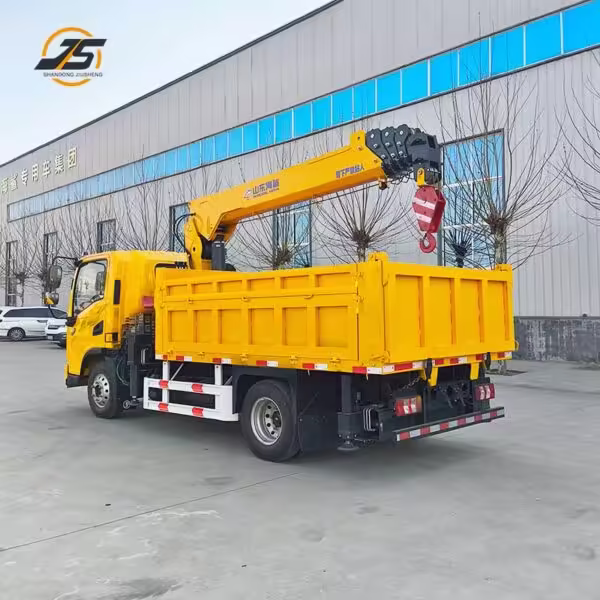

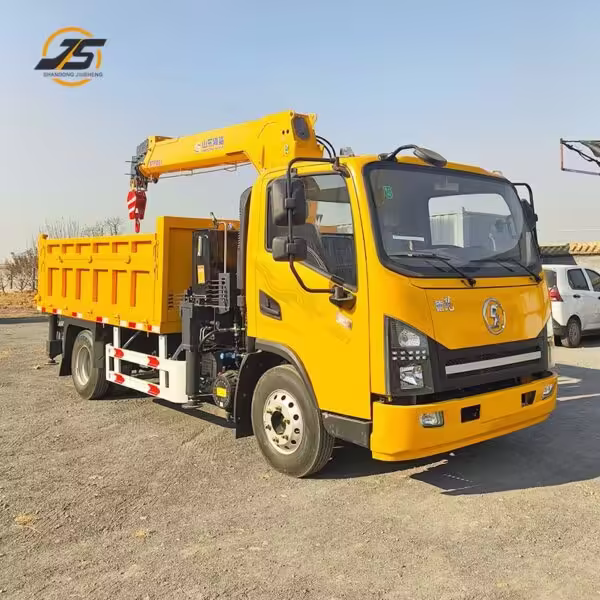

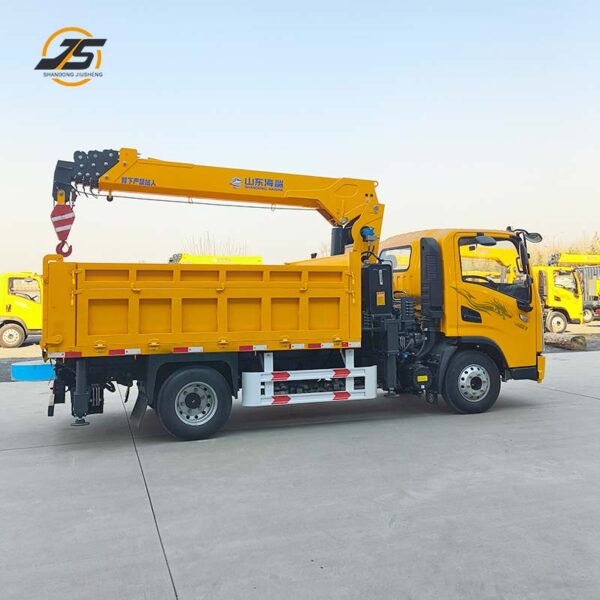

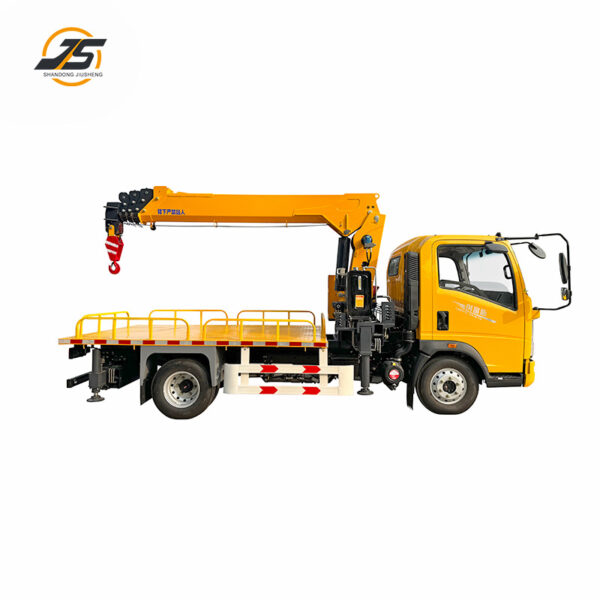

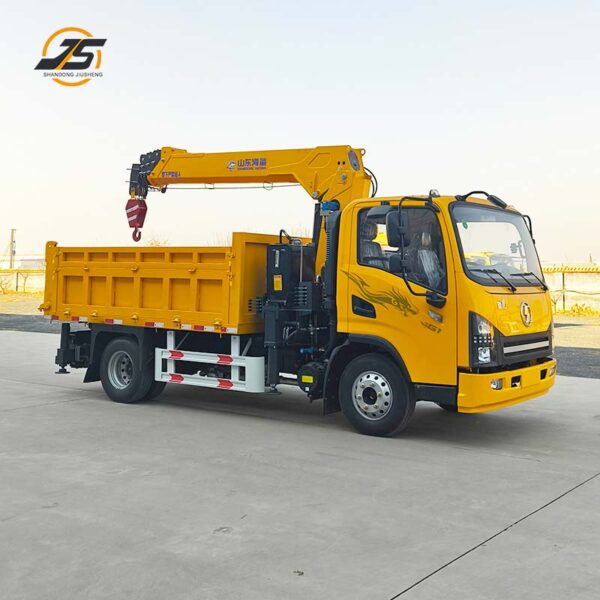

10T Crane
Truck-mounted crane transport vehicle (hereinafter referred to as “truck-mounted crane”) is a multi-functional engineering vehicle integrating cargo hoisting and transportation functions, which is widely used in construction sites, logistics and warehousing, municipal engineering, power repair, docks and ports, landscaping and other scenarios.
The truck-mounted crane is mainly composed of the following parts:
Chassis: Truck chassis, optional Dongfeng, Jiefang, Howo and other brands, tonnage covering 2 tons to 20 tons. The chassis provides driving power and stability to the vehicle.
Crane: Installed on the chassis, the lifting, slewing and lifting of goods are realized through the hydraulic lifting and telescopic system.
Cargo box: used for loading goods, the length can be configured according to demand.
Outriggers: It is divided into front outriggers (under the crane frame) and rear outriggers (installed at the rear end of the chassis frame), which are used to maintain the stability and stability of the crane operation and increase the hoisting capacity.Open full product page10T Crane Truck Technical Parameters Parameter Value Engine Weichai WP4.6NQ220E61 Horsepower 220 hp Transmission HW90510C Front Axle Type 4.5t (Drum type) Rear Axle Type 10.0t (drum type)/4.875 Driving method 4WD Fuel tank 140L aluminum alloy fuel tank Carriage size 3.5*2.1*0.5m (can customize) Tire model 275/80R22.5 18PR Color Dune Yellow Unloading method Automatic rear unloading Braking method Air brake Cab 2021 Pioneer (classic interior)/2250/flat-top half-row Cab interior Cab full package Cab seat Air seat (high-grade PU) Rearview mirror Left/right frame-type new national standard rearview mirror (four-mirror type) Brake Air brake Other configuration air conditioner 10T Crane Model S0S250A-4 Maximum lifting weight 10000 Kg Fuel tank capacity 150 L Maximum lifting moment 25 t·m Recommended power 30 kW Crane deadweight 3900 Kg Recommended flow rate of hydraulic system 63 L/min Installation space 1200 mm Rated pressure of hydraulic system 28 MPa 10T Crane
-
×
3 Tons Off-Road Forklift
Off-road forklifts are industrial vehicles specifically designed for complex terrains and harsh working conditions, featuring robust off-road capabilities and adaptability to multiple scenarios. They are widely used in construction, mining, agriculture, forestry, and logistics.
I. Core Features
Off-Road Performance: Equipped with four-wheel drive or full-time all-wheel-drive systems, paired with large-diameter, deep-tread tires to enhance traction on muddy, sandy, and rocky surfaces.Power System: Primarily powered by diesel engines, delivering high torque and extended endurance, making them ideal for heavy-load continuous operations.
Reinforced Structure: The chassis is constructed with high-strength steel, improving torsional rigidity by over 30% to withstand rugged terrains.
II. Core Application Scenarios
Construction & Infrastructure: In construction waste yards or earthwork sites, off-road forklifts can quickly load debris, bricks, and other waste materials, adapting to muddy or uneven ground.Mining & Quarries: With a load capacity of 8–10 tons, they can transport ores and blasting equipment to open-pit mines, featuring a climbing ability of 35%–45% to meet steep slope operations in mining areas.
Agricultural Transport: In orchards and farms, they move fruit crates and feed bags, while the tire tread design reduces soil compaction (pressure decreased by 20%–30%), protecting farmland structure.
Forestry Operations: Equipped with log grapple attachments, they can load logs and branches onto transport vehicles, adapting to narrow mountain slopes.
Let me know if you’d like any refinements!
Open full product pageJiusheng JS-3 Off-Road Forklift Technical Parameters Parameter Value Product Model JS-3 Engine Model Xichai/Yunnei National Four 493VP Rated lifting weight 3000 kg Drive Mode Four-wheel drive Rated lifting height 3000-6000mm (optional) Gearbox Model 265 dual high and low speed torque converter Load center distance 600 mm Axle Model One-piece cast steel axle Minimum turning radius 3500 mm Tire model 23.5/70-16 Reinforced Maximum climbing angle ≤38° Wheelbase 2200 mm Minimum ground clearance 350 mm Width of mast steel 160 mm Forward/back Angle 10.0/6.0 Fork length 1220 mm Fastest running speed 38 km/h Maximum hook traction 25.0 kN 3 Tons Off-Road Forklift
-
×
3.5 Tons Off-Road Forklift
Off-road forklifts are industrial vehicles specifically designed for complex terrains and harsh working conditions, featuring robust off-road capabilities and adaptability to multiple scenarios. They are widely used in construction, mining, agriculture, forestry, and logistics.
I. Core Features
Off-Road Performance: Equipped with four-wheel drive or full-time all-wheel-drive systems, paired with large-diameter, deep-tread tires to enhance traction on muddy, sandy, and rocky surfaces.Power System: Primarily powered by diesel engines, delivering high torque and extended endurance, making them ideal for heavy-load continuous operations.
Reinforced Structure: The chassis is constructed with high-strength steel, improving torsional rigidity by over 30% to withstand rugged terrains.
II. Core Application Scenarios
Construction & Infrastructure: In construction waste yards or earthwork sites, off-road forklifts can quickly load debris, bricks, and other waste materials, adapting to muddy or uneven ground.Mining & Quarries: With a load capacity of 8–10 tons, they can transport ores and blasting equipment to open-pit mines, featuring a climbing ability of 35%–45% to meet steep slope operations in mining areas.
Agricultural Transport: In orchards and farms, they move fruit crates and feed bags, while the tire tread design reduces soil compaction (pressure decreased by 20%–30%), protecting farmland structure.
Forestry Operations: Equipped with log grapple attachments, they can load logs and branches onto transport vehicles, adapting to narrow mountain slopes.
Let me know if you’d like any refinements!
Open full product pageJiusheng JS-3.5 Off-Road Forklift Technical Parameters Parameter Value Product Model JS-3.5 Engine Model Xichai/Yunnei National Four 493VP Rated lifting weight 3500 kg Drive Mode Four-wheel drive Rated lifting height 3000-6000mm (optional) Gearbox Model 265 dual high and low speed torque converter Load center distance 600 mm Axle Model One-piece cast steel axle Minimum turning radius 3500 mm Tire model 23.5/70-16 Reinforced Maximum climbing angle ≤38° Wheelbase 2200 mm Minimum ground clearance 350 mm Width of mast steel 160 mm Forward/back Angle 10.0/6.0 Fork length 1220 mm Fastest running speed 38 km/h Maximum hook traction 25.0 kN 3.5 Tons Off-Road Forklift
-
×
4 Tons Off-Road Forklift
Off-road forklifts are industrial vehicles specifically designed for complex terrains and harsh working conditions, featuring robust off-road capabilities and adaptability to multiple scenarios. They are widely used in construction, mining, agriculture, forestry, and logistics.
I. Core Features
Off-Road Performance: Equipped with four-wheel drive or full-time all-wheel-drive systems, paired with large-diameter, deep-tread tires to enhance traction on muddy, sandy, and rocky surfaces.Power System: Primarily powered by diesel engines, delivering high torque and extended endurance, making them ideal for heavy-load continuous operations.
Reinforced Structure: The chassis is constructed with high-strength steel, improving torsional rigidity by over 30% to withstand rugged terrains.
II. Core Application Scenarios
Construction & Infrastructure: In construction waste yards or earthwork sites, off-road forklifts can quickly load debris, bricks, and other waste materials, adapting to muddy or uneven ground.Mining & Quarries: With a load capacity of 8–10 tons, they can transport ores and blasting equipment to open-pit mines, featuring a climbing ability of 35%–45% to meet steep slope operations in mining areas.
Agricultural Transport: In orchards and farms, they move fruit crates and feed bags, while the tire tread design reduces soil compaction (pressure decreased by 20%–30%), protecting farmland structure.
Forestry Operations: Equipped with log grapple attachments, they can load logs and branches onto transport vehicles, adapting to narrow mountain slopes.
Let me know if you’d like any refinements!
Open full product pageJiusheng JS-4 Crane Technical Parameters Parameter Value Product Model JS-4 Engine Model Xichai/Yunnei 4102 High Voltage Common Rail Rated lifting weight 4500 kg Drive Mode Four-wheel drive Rated lifting height 3000-6000mm (optional) Gearbox Model 265 dual high and low speed torque converter Load center distance 600 mm Axle Model Integrated large wheel edge cast steel axle Minimum turning radius 3800 mm Tire model 16/70-20 Reinforced Maximum climbing angle ≤38° Wheelbase 2400 mm Minimum ground clearance 380 mm Width of mast steel 180 mm Forward/back Angle 10.0/6.0 Fork length 1520 mm Fastest running speed 42 km/h Maximum hook traction 30.0 kN 4 Tons Off-Road Forklift
-
×
5 Tons Off-Road Forklift
Off-road forklifts are industrial vehicles specifically designed for complex terrains and harsh working conditions, featuring robust off-road capabilities and adaptability to multiple scenarios. They are widely used in construction, mining, agriculture, forestry, and logistics.
I. Core Features
Off-Road Performance: Equipped with four-wheel drive or full-time all-wheel-drive systems, paired with large-diameter, deep-tread tires to enhance traction on muddy, sandy, and rocky surfaces.Power System: Primarily powered by diesel engines, delivering high torque and extended endurance, making them ideal for heavy-load continuous operations.
Reinforced Structure: The chassis is constructed with high-strength steel, improving torsional rigidity by over 30% to withstand rugged terrains.
II. Core Application Scenarios
Construction & Infrastructure: In construction waste yards or earthwork sites, off-road forklifts can quickly load debris, bricks, and other waste materials, adapting to muddy or uneven ground.Mining & Quarries: With a load capacity of 8–10 tons, they can transport ores and blasting equipment to open-pit mines, featuring a climbing ability of 35%–45% to meet steep slope operations in mining areas.
Agricultural Transport: In orchards and farms, they move fruit crates and feed bags, while the tire tread design reduces soil compaction (pressure decreased by 20%–30%), protecting farmland structure.
Forestry Operations: Equipped with log grapple attachments, they can load logs and branches onto transport vehicles, adapting to narrow mountain slopes.
Let me know if you’d like any refinements!
Open full product pageJiusheng JS-5 Off-Road Forklift Technical Parameters Parameter Value Product Model JS-5 Engine Model Xichai/Yunnei 4102 turbocharged high-pressure common raill Rated lifting weight 5000 kg Drive Mode Four-wheel drive Rated lifting height 4000-6000mm (optional) Gearbox Model 265 dual high and low speed torque converter Load center distance 600 mm Axle Model Integrated large wheel edge cast steel axle Minimum turning radius 3800 mm Tire model 16/70-24 Reinforced Maximum climbing angle ≥38° Wheelbase 2400 mm Minimum ground clearance 380 mm Width of mast steel 180 mm Forward/back Angle 10.0/6.0 Fork length 1520 mm Fastest running speed 45 km/h Maximum hook traction 35.0 kN 5 Tons Off-Road Forklift
-
×
6 Tons Off-Road Forklift
Off-road forklifts are industrial vehicles specifically designed for complex terrains and harsh working conditions, featuring robust off-road capabilities and adaptability to multiple scenarios. They are widely used in construction, mining, agriculture, forestry, and logistics.
I. Core Features
Off-Road Performance: Equipped with four-wheel drive or full-time all-wheel-drive systems, paired with large-diameter, deep-tread tires to enhance traction on muddy, sandy, and rocky surfaces.Power System: Primarily powered by diesel engines, delivering high torque and extended endurance, making them ideal for heavy-load continuous operations.
Reinforced Structure: The chassis is constructed with high-strength steel, improving torsional rigidity by over 30% to withstand rugged terrains.
II. Core Application Scenarios
Construction & Infrastructure: In construction waste yards or earthwork sites, off-road forklifts can quickly load debris, bricks, and other waste materials, adapting to muddy or uneven ground.Mining & Quarries: With a load capacity of 8–10 tons, they can transport ores and blasting equipment to open-pit mines, featuring a climbing ability of 35%–45% to meet steep slope operations in mining areas.
Agricultural Transport: In orchards and farms, they move fruit crates and feed bags, while the tire tread design reduces soil compaction (pressure decreased by 20%–30%), protecting farmland structure.
Forestry Operations: Equipped with log grapple attachments, they can load logs and branches onto transport vehicles, adapting to narrow mountain slopes.
Let me know if you’d like any refinements!
Open full product pageJiusheng JS-6 Off-Road Forklift Technical Parameters Parameter Value Product Model JS-6 Engine Model Xichai/Yuchai 4105 turbocharged high-pressure common rail Rated lifting weight 6000 kg Drive Mode Four-wheel drive Rated lifting height 4000-6000mm (optional) Gearbox Model 280 dual high and low speed torque converter Load center distance 600 mm Axle Model GS3000 Heavy duty Wheel Edge Cast Steel Axle Minimum turning radius 3800 mm Tire model 12R22.5 vacuum steel wire reinforced type Maximum climbing angle ≤38° Wheelbase 2400 mm Minimum ground clearance 380 mm Width of mast steel 180 mm Heavy duty Forward/back Angle 10.0/8.0 Fork length 1520 mm Fastest running speed 45 km/h Maximum hook traction 35.0 kN 6 Tons Off-Road Forklift
-
×
8 tons off-road forklift main technical parameters
Off-road forklifts, also known as field forklifts, are material-handling equipment designed for loading and unloading goods in areas with poor road conditions, such as airports, docks, and railway stations. They feature excellent mobility, off-road capability, and reliability.
An off-road forklift typically consists of four main components:
Engine、Chassis、Working mechanism、Electrical system
These forklifts are primarily used in:
Urban construction sites、Pipeline installation、Oilfield development、Mountainous and forested areas for field engineering、Container handling at ports and freight yards、Military logistics for transporting supplies during wartime
Let me know if you’d like any adjustments!
Open full product pageJiusheng JS-8 Crane Technical Parameters Parameter Value Product Model JS-8 Engine Model Yuchai 4108 turbocharged high-pressure common rail Rated lifting weight 8000 kg Drive Mode Four-wheel drive Rated lifting height 4000-6000mm (optional) Gearbox Model 315 Dual High Low Speed Hydraulic Torque Converter Load center distance 800 mm Axle Model GS3000 Heavy duty Wheel Edge Cast Steel Axle Minimum turning radius 5500 mm Tire model 17.5-25 Engineering Steel Wire Tire Maximum climbing angle <38° Wheelbase 2800 mm Minimum ground clearance 380 mm Width of mast steel 200 mm Heavy duty Forward/back Angle 10.0/8.0 Fork length 1520 mm Fastest running speed 45 km/h Maximum hook traction 55 kN 8 tons off-road forklift main technical parameters
